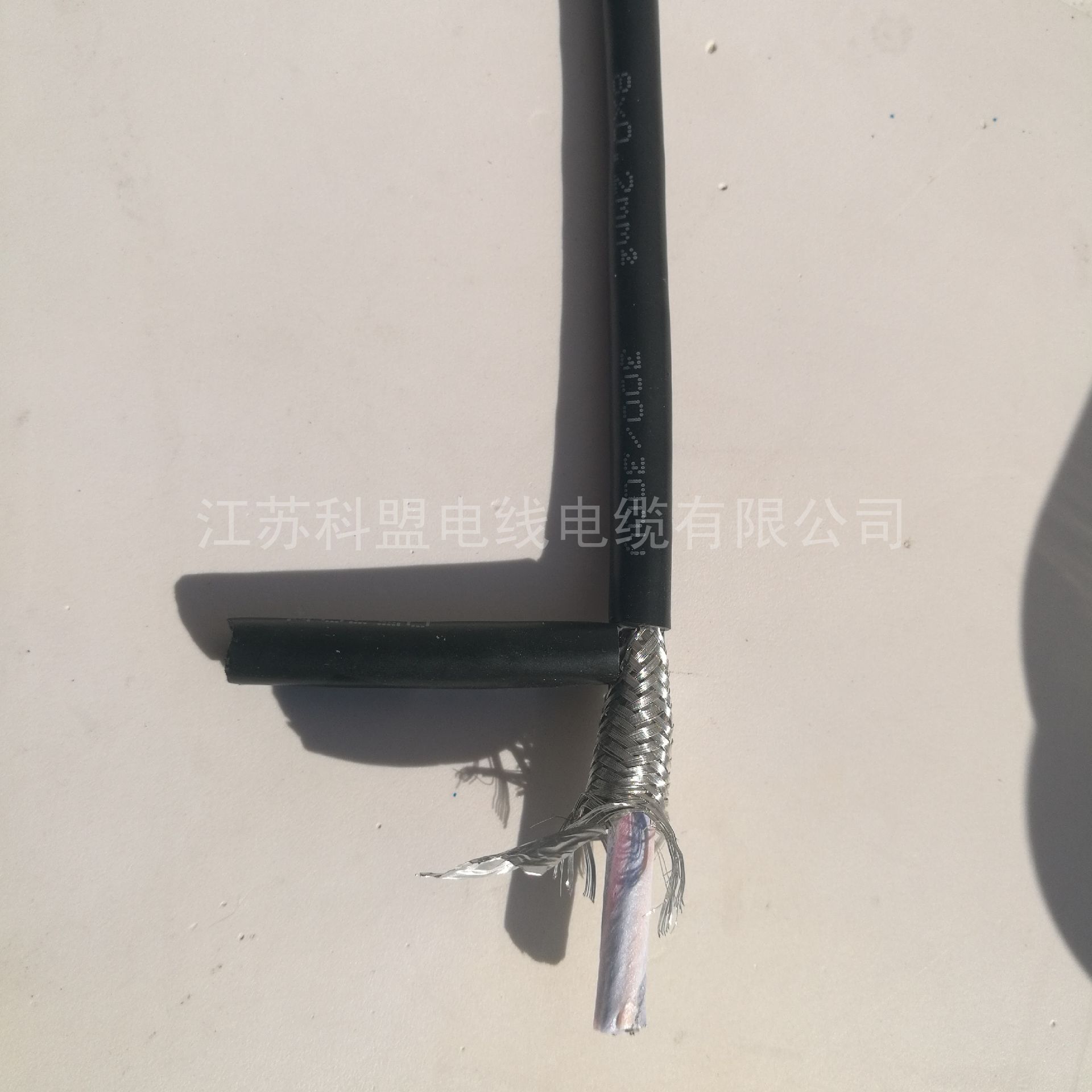

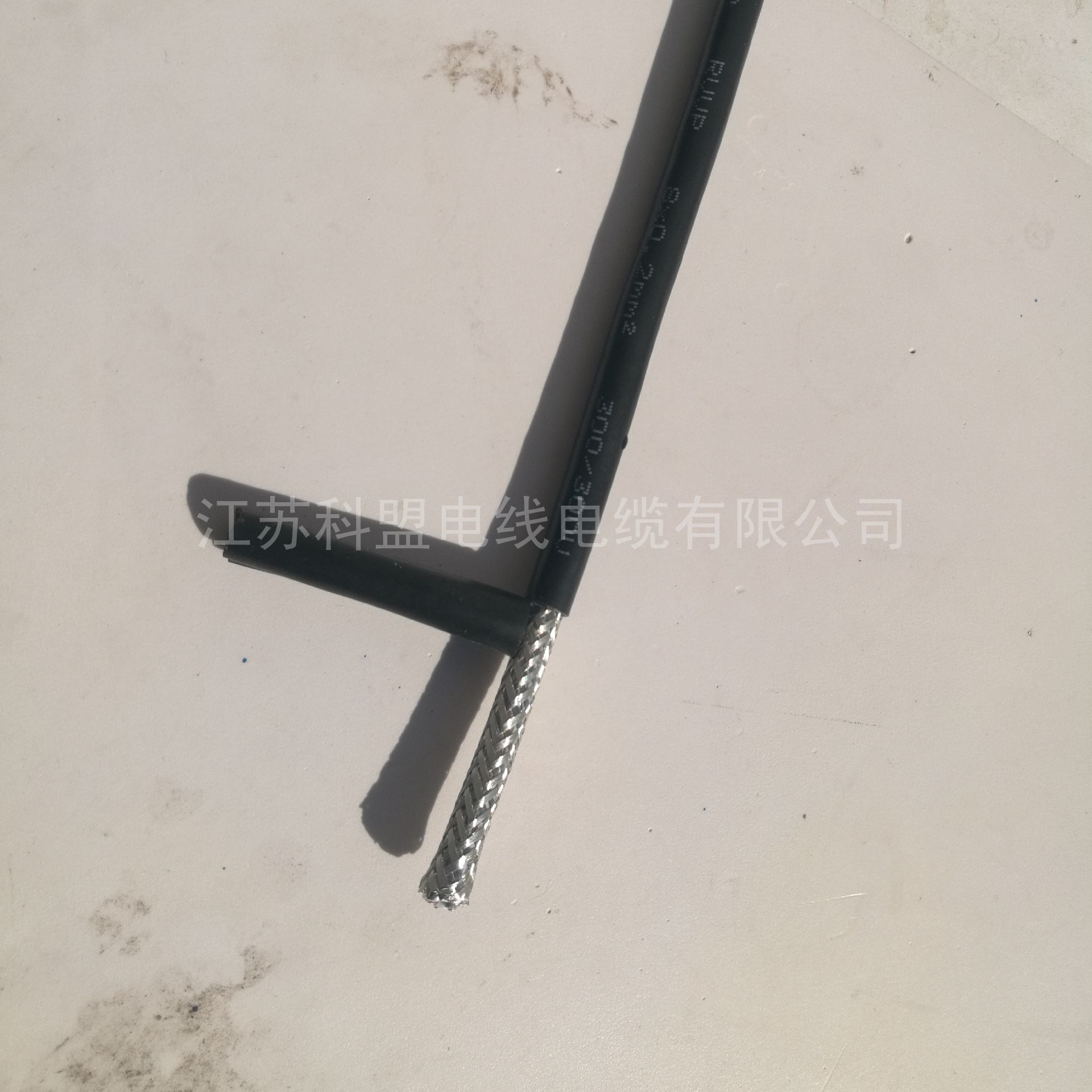

Tin-plated 8-core 0.2 square shielded flexible cable













Electrical Installation Shielded Cable RVVP

Application:
As a measuring, monitoring and control cable suitable for use in machine tool manufacturing, plant installation engineering, power stations, heating and air conditioning systems, refrigeration equipment, office automation equipment, and data processing systems.

Product Features:
PVC has good mechanical properties, excellent electrical insulation properties, chemical stability due to the use of a new aluminum foil Melaga copper mesh woven double-layer shielding, effective resistance to electromagnetic interference.

Cable construction:
Conductor: multi-strand fine stranded oxygen-free copper wire, in accordance with VDE0295CLASS 5 standard
Insulation: special mixed PVC insulation
Color: 0.5mm color representation, in accordance with JB8734
     Brown, black, light blue, purple, pink, orange, blue.
     0.5mm black digital white number, 3 core above with yellow green grounding wire.
Inner lining: PP tape or aluminum foil Mylar wrap shield.
Braiding: Bare copper wire or tinned copper wire braided shield.
Sheath: Mixed 70 ° PVC sheath, black (RAL9005) or grey (RAL7001)
     Also according to customer requirements comply with DESINA standard color.
Application standard: JB8734.5-1998 GB5023.7-1997

Detailed parameters:
* Small bending radius:                      Temperature range:
Mobile installation: 15× cable outer diameter              Mobile installation: -10℃---+70℃
Fixed installation: 6× cable outer diameter               Fixed installation: -30℃---+70℃
Test voltage:                          Operating voltage:
< 0.5mm2    2000V                      < 0.5mm2   300/300V
≥0.5mm2   2500V ≥0.5mm2  300/500V
